Bare plywood is great for a work van, but if you are building a campervan, you want a nice, comfortable interior. Carpet lining your ply panels is the best way to achieve a professional look while adding extra sound dampening.

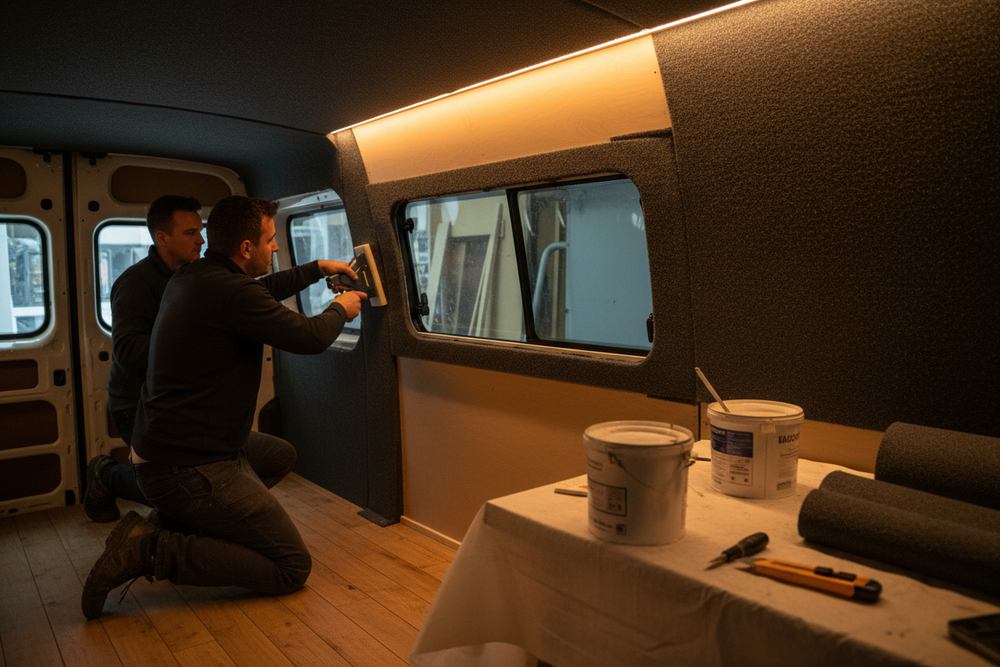

Step-by-Step Guide to Carpet Lining Your Campervan
Carpet lining is one of those jobs that can make a huge difference to the look and feel of a campervan conversion. Done properly, it gives the interior a clean, professional finish while helping to hide exposed metalwork, insulation and other conversion components.
It can look like a straightforward job, but getting a smooth finish around corners, windows, wheel arches and awkward shapes takes a little preparation and patience.
In this guide, we'll walk you through the process from preparing the van to fitting, stretching and trimming the carpet.
Before you start: If you're sound deadening and insulating your van, complete those jobs before installing the carpet lining.
What You'll Need
Having everything ready before you begin will make the process considerably easier.
You'll typically need:
- 4-way stretch automotive carpet
- Suitable high-temperature contact adhesive
- Stanley knife with spare blades
- Sharp scissors
- Plastic trim tools
- Microfibre cloths
- Suitable cleaning/degreasing product
- Protective gloves
- Safety glasses
- Appropriate respiratory protection when using adhesive
- A container for storing clips, screws and fittings
Always check the manufacturer's instructions for your adhesive, particularly regarding ventilation, drying times and suitable surfaces.
1. Prepare the Van
Good preparation is the foundation of a good carpet finish.
Remove anything that will get in the way, including plastic trims, panels, clips and other removable fittings. Keep all the fixings together in a container so you know where everything belongs when it's time to put the van back together.
Next, thoroughly clean the metal surfaces that will receive the carpet.
Remove dust, dirt, grease and any other contamination. Adhesive will not bond properly to a dirty or greasy surface, so don't rush this stage.
Take your time and inspect the area once it's clean. Any loose material, sharp edges or unnecessary fixings should be dealt with before you begin.
2. Decide Where Your Carpet Will Start
Before applying any adhesive, spend some time positioning the carpet.
There are two common approaches.
The first is to remove individual panels, carpet them separately and then reinstall them. This can make certain areas easier to work on and means the panels can still be removed later if access is required.
The second approach is to carpet larger sections of the van using one continuous piece of material. This can produce a more seamless appearance and is the method we'll concentrate on here.
Don't cut your carpet to its final size straight away.
Leave plenty of excess material around the edges. It's much easier to trim excess carpet away at the end than it is to discover you've cut a piece too short.
3. Measure and Position the Carpet
Roll out enough carpet to cover the section you're working on.
Allow additional material around the edges so that the carpet can be tucked behind trims and worked into corners and recesses.
As a general rule, it's better to have too much material than too little.
Check the position carefully before reaching for the adhesive. Look at how the carpet will sit around:
- Window apertures
- Door openings
- Roof and side trims
- Wheel arches
- Structural ribs
- Recesses and contours
Once you're happy with the starting position, you can begin bonding the material.
4. Apply the Adhesive
Work in manageable sections rather than trying to glue an entire side of the van in one go.
Apply the adhesive evenly to both carpet and van surfaces according to the adhesive manufacturer's instructions. Good ventilation and respiratory protection is essential when working with spray adhesive.
Avoid applying excessive adhesive. A consistent coating is preferable to areas containing heavy deposits, which can cause unwanted lumps, marks or prolonged drying times.
Allow the adhesive to reach the correct tack before bringing the carpet into contact with the surface. The exact time will depend on the product you're using, so follow its instructions rather than relying on a fixed drying time.
5. Start Fitting the Carpet
Begin at a straightforward reference point, such as an upper corner.
Secure a small section first and check that the carpet is sitting in the correct position.
From there, gradually work across the panel while maintaining even tension.
The key is not to rush.
Don't simply press the carpet against the van and hope it follows every contour. Use your hands and suitable plastic trim tools to gradually work the material into the shape of the panel.
Keeping consistent tension helps minimise wrinkles and gives the finished surface a much cleaner appearance.
If you notice a crease developing, stop.
Where the adhesive allows it, carefully lift the carpet back, reposition it and continue. Trying to force a crease flat after the carpet has fully bonded can leave a permanent mark.
6. Work Around Curves and Recesses
Campervan interiors are full of awkward shapes, which is where stretch carpet really comes into its own.
As you approach a recess or curved section, work the material gradually rather than trying to stretch it into position in one movement.
Use your trim tools to push the carpet neatly into channels, grooves and corners.
A little extra material can usually be manipulated into position, but don't stretch the carpet excessively. The aim is to distribute the stretch across the surrounding area rather than creating one highly tensioned section.
7. Carpet Around Windows
Windows require particular attention because mistakes here are very noticeable.
Continue bonding the carpet around the metal window aperture while leaving the section directly across the glass free until you're ready to make the final cuts.
Maintain tension in the material as you work around the opening.
When you're ready to trim, make a opening in the centre of the window area and gradually work towards the edges. This gives you material to pull around the aperture rather than cutting too close to the final edge immediately.
Work slowly around the frame and keep checking the position of the carpet before making each cut.
A sharp blade is essential for achieving a neat edge.
8. Tackling Wheel Arches
Wheel arches can be one of the trickiest areas to carpet because of their compound curves.
Start at the top and gradually work your way around the arch.
Apply the carpet in small sections and use a trim tool to push the material into the contours.
If wrinkles begin to appear, don't simply try to flatten them with more pressure. Stop, release the carpet where necessary and redistribute the material.
This is one of those areas where patience makes a huge difference.
9. Trim the Excess Carpet
Once the carpet is fully bonded and you're happy with the overall finish, you can begin trimming.
Don't try to achieve the final edge too early.
Leave a small amount of excess material around areas that will eventually be covered by flooring, roof panels or plastic trim. This gives you some room for adjustment and helps prevent visible gaps.
Use a fresh, sharp blade and make cuts.
When trimming around windows and other visible openings, take your time. Several light cuts are generally easier to control than trying to force the blade through the material in one movement.
10. Reinstall the Trim
Once the carpet has been trimmed, you can begin putting the interior back together.
Refit the plastic trims, panels, clips and other components you removed earlier.
The carpet should disappear neatly underneath the trims wherever possible, leaving a clean transition between the carpeted areas and the original van interior.
Finishing Touches
If you've got small amounts of adhesive residue on exposed surfaces, clean them carefully, these can normally be picked off once the adhesive is dry.
Tips for a Professional Finish
A few simple techniques can make a big difference:
- Don't rush the preparation. Clean surfaces give the adhesive the best chance of forming a strong bond.
- Work in small sections. This gives you more control over the adhesive and the carpet.
- Keep consistent tension. This helps prevent wrinkles and uneven areas.
- Use sharp blades. A blunt blade is more likely to snag or tear the ends of the carpet.
- Leave trimming until the end. You can always remove excess material, but you can't add it back.
- Take extra care around windows and wheel arches. These areas usually require the most manipulation.
- Don't be afraid to stop and reposition. Fixing a crease before the adhesive has fully bonded is much easier than trying to hide it afterwards.
Final Thoughts
Carpet lining can completely transform the interior of a campervan, but the quality of the finished result comes down to preparation, the right materials and taking your time.
If this is your first attempt, don't be discouraged if the first section takes longer than expected. Once you understand how the carpet stretches and how it behaves around different shapes, the process becomes much easier.
Take your time, work methodically and leave yourself enough material to make adjustments. The extra effort will show in the finished conversion.
